超Robot for Optical Automatic Detection of Large Roller Appearance Defects

Robot for Optical Automatic Detection of Large Roller Appearance Defects是专业检测中大型滚子外圆、两端、凹穴和倒角的外观缺陷的检测设备。使用Robot control滚子移动,成功避免了大滚子的二次损伤。速度最高可达30件每秒,可在各种环境下进行7*24小时不间断工作。先进的检测技术使检测功能更齐全,友好的人机界面使人工操作更便捷

Functional

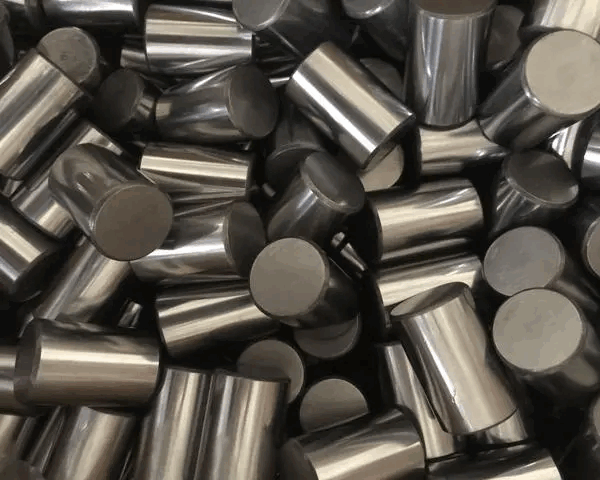

Cylindrical Roller
Aligning roller
Tapered roller
01
03
Technical Indicators

Testing items

Outer circle appearance defect

欠磨、磨伤、过磨、缺料、压伤、锈斑、擦伤、划伤、磕碰伤等缺陷。

Testing items

Appearance defects on both end faces

端面磨伤、端面欠磨、端面裂纹、端面废料等缺陷。

Detection range

Ø 40~160mm, H40-300mm

Testing requirements

The surface of the workpiece is clean and free of oil stains

Detection speed

30 Pcs/second

Mean time between failures

10,000H

Optical resolution

0.03mm

Supply Voltage

220V,50HZ

Power

6200W

Equipment air source

0.5~0.8MPa

Size/Weight

1.5m*1.7 m*2.2 m / 1500kg

System working environment

Temperature:5℃~ 30℃ Relative humidity:<70%Rh

Other characteristics

1、Real time display of detection status and NG product quantity alarm.

2、The device software has remote technical support function.
